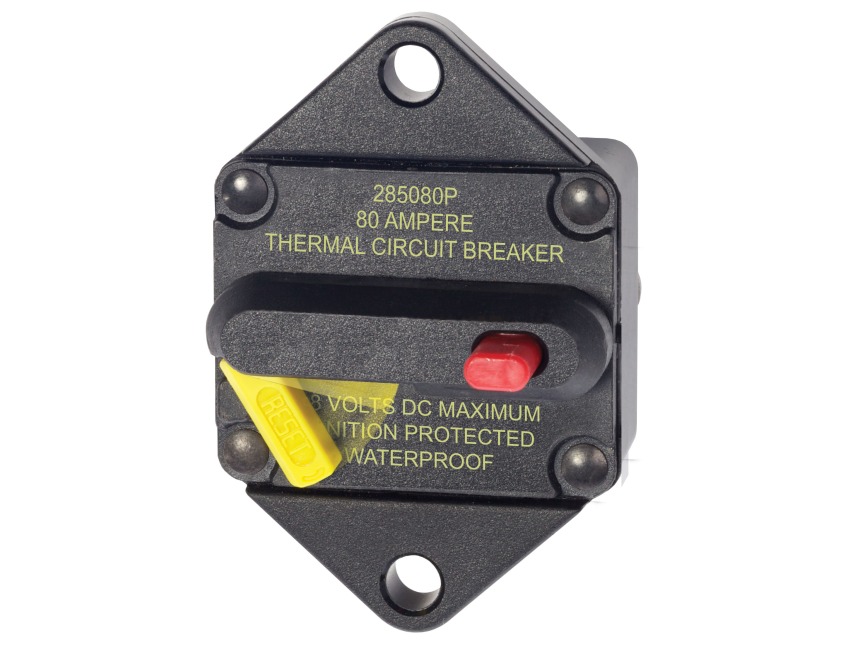

Blue Sea - 285-Series Circuit Breaker - Panel Mount 80A - PN. 7086

Click to enlarge

MPN 7086

£73.68

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Blue Sea - 285-Series Circuit Breaker - Panel Mount

  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit
  • "Trip Free" - cannot be held closed after trip



Specifications:

  • Maximum Voltage - 48V DC
  • Mounting - Panel Mount
  • Circuit Breaker Type - Thermally responsive Bi-metal blade
  • Terminal Stud Torque - 50 in-lb (5.65 Nm)
  • Interrupt Capacity (The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage) - 3000A @ 48V Achieved using SAE J1625
  • Minimum Operating Temperature -40° C
  • Maximum Operating Temperature 85° C
  • Circuit Breaker Class - Type III - switchable/manual reset - trip free
  • Terminal Stud - M6 (accepts 1/4" Ring Terminal)
  • Weight - 0.50lb (0.23 kg)

Specification List

Sub-Type 285 Series Weight 0.23 kg
Country of Origin USA Tariff Code 853620
Type Circuit Breakers
