Battery cable terminal lug for 50mm SQ cable with 8mm hole - CCT50-8

Click to enlarge

Code1

MPN CCT50-8

£0.89

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

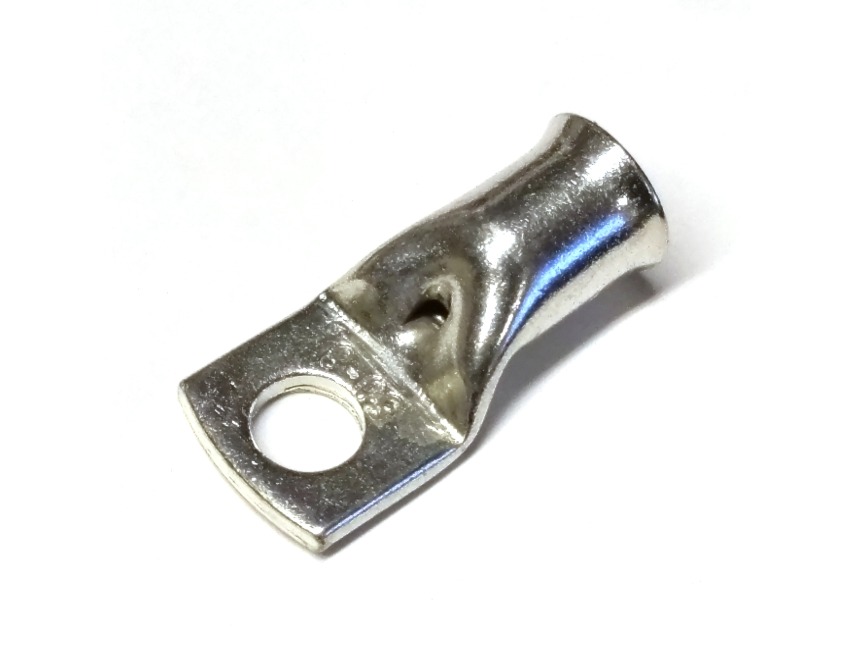

Tin plated copper tube terminal

50mm² x 8mm hole

Our range of tin coated copper tube terminals is manufactured from seamless copper tube to BSEN 12449: 2016.

All terminals are provided with an inspection hole to ensure the conductor is fully inserted before crimping. This is also useful if the final assembly is to be soldered.

A bell mouth aids with cable insertion and also ensures a smooth transition from lug to cable, thus avoiding the problems of chafing where the final assembly is subject to vibration. The internal barrel diameters suit standard cables as defined in BS6360.

All of our terminals fully comply with BS EN 61238-1-2003 and BS 4579 bright electro-tin plating to BS 1872: 1974.

Specification List

Type Cable lug Sub-Type 50mm cable lug
