Quicksilver hose tail - Pipe fitting - straight connector barb-5/16" 22-13035002
Click to enlarge
Code181590116604
MPN 22-8M0181450
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

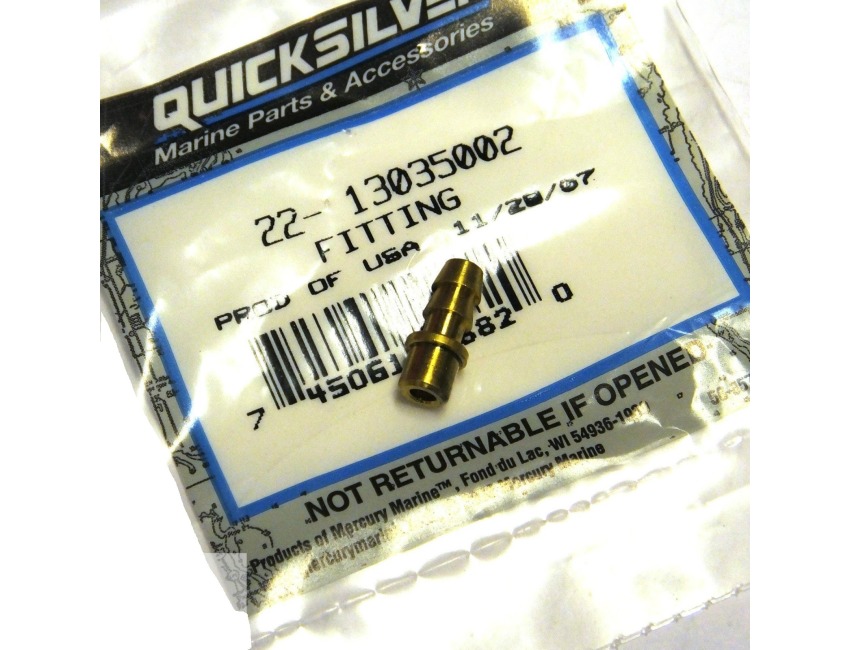

Fuel Connector 1/4" Diameter x 5mm (3/16")
Genuine Quicksilver straight fuel fitting for 5mm hose.
Used on various outboard motor fuel systems 200hp - 275hp
also used for the lower gear case speedometer hose connection on 30hp - 75hp
Dimensions:
Length: 18.3mm
Barb Diameter: 6.35mm (for 3/16" ID or 5mm ID hose)
Journal Diameter: 6.45mm
Hole diameter: 3.2mm
Material: Brass
Specification List
| Type | Fuel system components | Sub-Type | Hose tail |
|---|---|---|---|
| Country/Region of Manufacture | United States |
