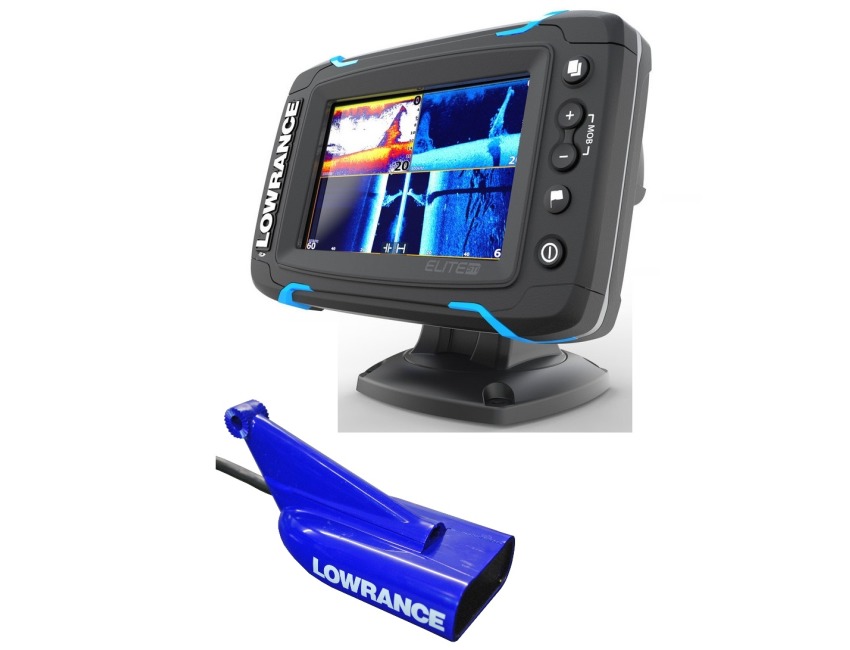

Lowrance Elite 5Ti Chartplotter / Fishfinder with Downscan skimmer transducer

Click to enlarge

MPN 000-14368-001

£449.95

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Lowrance Elite 5Ti Chartplotter / Fishfinder with Downscan skimmer transducer Mid/High/Downscan
(No Cartography)

The Lowrance Elite-5Ti is a touchscreen fishfinder/chartplotter that matches high-end functions and features with powerful performance all at an affordable price.
Sporting a Five-inch, high-resolution touchscreen display, the Elite-5 Ti has your sonar needs covered with StructureScan HD compatibility and support for Low/Mid/High CHIRP and 83/200 /455/800kHz frequencies.
It has a built-in GPS antenna and reliable Lowrance navigation technology, allowing you to navigate with ease.
The Elite-5 Ti also features integrated Bluetooth and wireless connectivity that not only allows you to download software updates directly to the unit, but gives you the capability to download Insight Genesis custom maps to the unit for immediate use directly from the water.
Elite-5 Ti Key Features
Widescreen, LED-backlit SolarMax colour display
Simple, easy-to-use interface
Touch-screen provides fast, fingertip access to all Elite Ti features
CHIRP Sonar plus DownScan Imaging
Top-of-the line sonar technologies provide the best possible view of the environment beneath your boat
Review sonar and structure history with TrackBack
Highly accurate, built-in 10Hz GPS antenna and support for WAAS+EGNOS+MSAS
Built-in wireless connectivity provides access to the GoFree Cloud where you can shop, purchase, download and immediately use Insight Genesis social maps, and third-party maps from GoFree partners
Optional global chart upgrade options include Navionics + and Jeppesen C-MAP MAX-N
TotalScan matches proven Broadband Sounder and CHIRP sonar with SideScan and DownScan Imaging technology, making it possible to target fish and search for fish-holding structure with the same transducer
General Display Size5in (127mm) Diag. Display Type WVGA color TFT LCD Resolution 800H x 480W Backlight Pure White LED Display Brightness 1200 Nits
Environmental Operating Temperature 5F to 131F (-15C to 55C ) Waterproof IPX7 with card door closed DOC Part 15.103 FCC rules & CE RTTE directive 1999/5/EC
Electrical Current Draw 0.9A @ 13VDC with backlight on full Operating Voltage 12VDC Supply Voltage 10.8-17VDC
User Interface Interface Single-touch touchscreen and Limited Keypad; ZOOM
+ -,WPT,LIGHT/POWER Chart Plotter Characteristics Display ModesNorth up, Course up (COG), Heading up (heading with external heading sensor or COG) Built-in CartographyLow detailBasemap cartography Add on Cartography Navico Insight HD, Navionics Platinum+/Platinum/Gold, Fishing HotSpots Alarms No GPS fix, Anchor, Low boat speed, XTE, Waypoint radius, Arrival
Sonar Characteristics Built-in CHIRP Yes Built-in Broadband Yes Built-in StructureScan Yes Sonar FrequencyMid/High CHIRP (83/200kHz) 455/800 kHz DownScan
(*Available frequencies determined by connected transducer) Broadband Power 500W RMS Sonar DownScan Max Depth 455/800 kHz300ft (91m) Sonar Broadband Max Depth Mid/High (83/200 kHz) transducer1000ft
(305M) Sonar AlarmsFish, Shallow TrackBackYes Temperature Readings Yes
Comms/Interface NMEA0183 1 x RS422 port Supported baud rates 1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200 NMEA 2000 1 Micro-C Data Card Slot 1 micro SD card up to 32GB
GPS/Navigation GPS TypeInternal high-sensitivity WAAS + EGNOS + MSAS Waypoints3000 Routes100 Trails100 plots with up to 10,000 points per trail GPS AlarmsAnchor, Arrival, Offcourse Background Mapping World reference basemap Mapping Options Lake Insight and Nautic Insight PRO and HD, Navionics Gold and HotMaps Premium, Fishing Hotspots PRO and Jeppessen C-Map Max-N Wide.

Specification List

Type Chartplotter-Fishfinder Sub-Type Chirp
Country/Region of Manufacture Mexico
