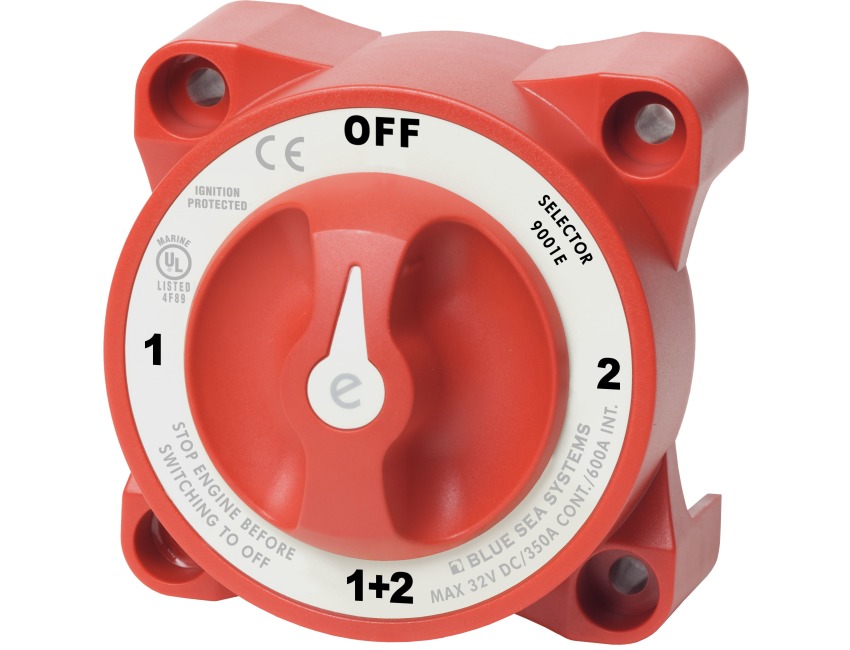

Blue Sea - Battery Switch - Marine rated - IP66 - 4 Way - OFF/1/2/1+2 PN. 9001E

Click to enlarge

Code185009426227

MPN 8991

£71.44

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Blue Sea - Battery Switch - 4 Way

PN9001E - Marine rated - IP66 - OFF/1/2/1+2

Switches isolated battery banks to all loads or combines battery banks to all loads
- Rated for 2000 amp cranking for 10 seconds (350 amp continuous)
- Make-before-break contact design allows switching between
battery banks without power interruption
- Ignition protected safe for installation aboard petrol powered
boats
- Case design allows surface, front panel, or rear panel mounting

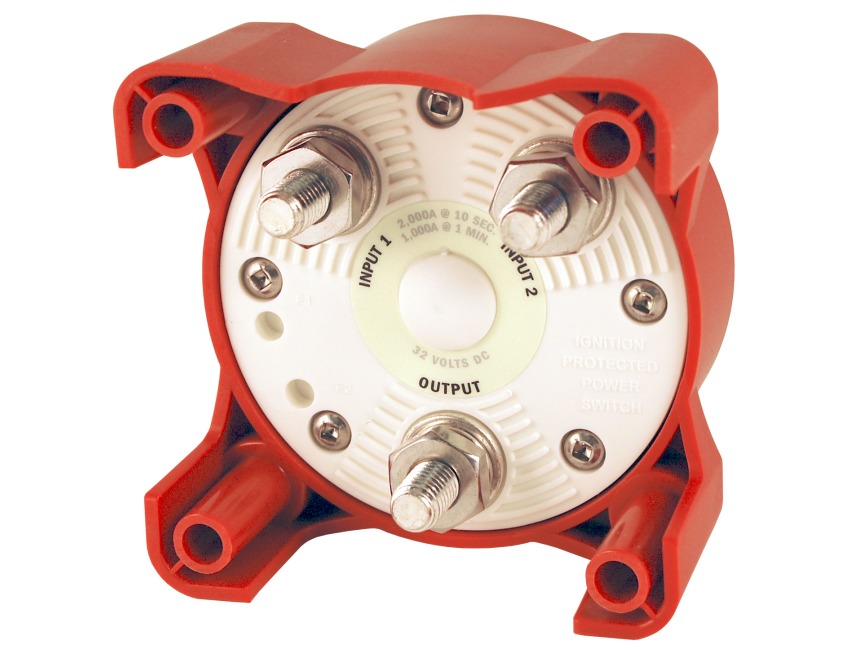

- Isolating cover with snap-on sections protects rear contacts

Specifications:

Cranking Rating: 10 sec. 2,000 Amps Cranking Rating: 1 min. 1,000 Amps Intermittent Rating: 5 min. 600 Amps Continuous Rating 350 Amps Maximum Voltage Rating 32 Volts DC Terminal Stud Size 10mm Terminal Stud Torque 140 in-lb (15.8 Nm) max. Mounting Holes Accepts #6 Screws Cable Size to Meet Ratings up to 120mm Cable Clearance For Cables up to 27.9mm Operation: On 1 / On 2 / Both / Off Size: 97mm Square and 60mm high.

Specification List

Type Battery switch Sub-Type 4 way
